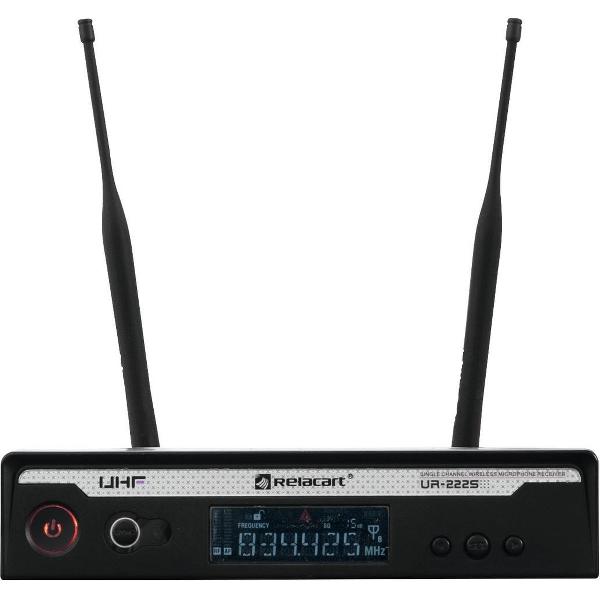

RELACART UR-222S 1-Channel UHF Receiver

Productomschrijving

Multifrequency wireless receiver with true diversity

Multifrequency wireless receiver with high-quality true diversity reception
2 license-free frequency ranges: 823-832 MHz (Duplex Gap) and 863-865 MHz
10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
Parallel operation of up to 9 systems is possible without any interference
Pilot tone technology (PLL) for interference-free reception
Operation range with line of sight approx. 80 meters
Automatic frequency scan (AFS) finds interface-free channels
Infrared interface for easy and error-free channel transfer to transmitters via infrared signal
LCD for battery status of the transmitter, antenna A/B, RF reception level, AF audio level and frequency
XLR and 6.3 mm jack output
2 detachable BNC antennas allow for use with the R-14D antenna divider
Matching transmitters optionally available: hand-held microphone (UH-222S), pocket transmitter (UT-200), boundary microphone (UB-200)
Delivery includes practical transport bag with jack cable and power unit
Durable metal housing
483 mm rack installation possible with supplied mounting brackets
License-free and approved in large parts of the EU (please check Duplex Gap on a country-by-country basis)
System:
True diversity, 1 channel

Carrier frequency:
UHF 823-832 MHz and 863-865 MHz

Receiving frequencies:
90


10 frequency banks with up to 10 preset frequencies each

Switching bandwidth:
11 MHz

Deviation:
±45 kHz

Frequency stability:
±0.0005 %

T.H.D.:
<0.7 % at 1 kHz

S/N ratio:
>105 dB

Modulation method:
FM

Coverage:
80 m (with line-of-sight)

Frequency range:
45-18000 Hz

Sensitivity:
5 dBµV (S/N >60 dB at 25 deviation)

Audio output:
XLR, bal.


6.3 mm jack, unbal.

Antenna inputs:
2 x BNC (supply 8 V/150 mA)

Power supply:
12 V DC, 500 mA


via supplied power unit connected to 100-240 V AC, 50/60 Hz

Power consumption:
12 W

Dimensions:
205 x 43 x 220 mm


Rack installation with 1 U


with supplied mounting brackets

Weight:
1.2 kg
