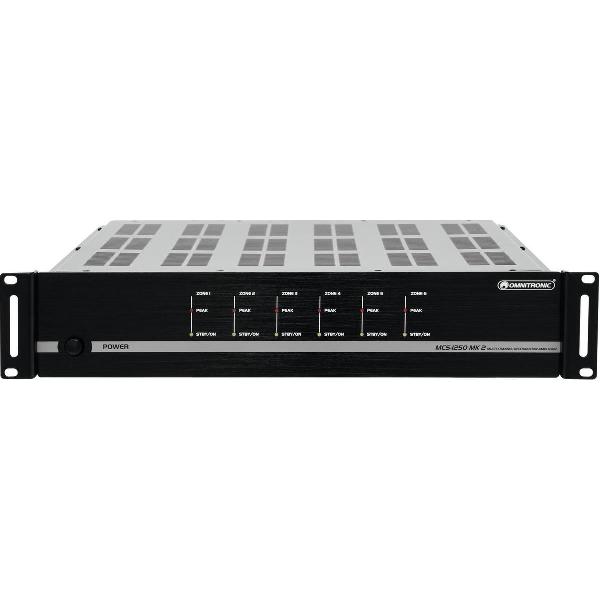

OMNITRONIC MCS-1250 MK2 6-Zone PA Versterker

Productomschrijving

6-zone audio amplifier with matrix assignment, 2 x 50 W / 4 ohms per zone

6-zone stereo amplifier for multi-zone PA applications
Updated version with touch pad wall controller
12 x 50 W/4 ohms per zone
Bridge mode with 100 W/8 ohms individually selectable per zone
Efficient Class D technology
6 stereo inputs expandable to 18 stereo zones with further units
Matrix input assignment: input sources are freely assignable to each channel
6 pre-amp outputs to connect external power amplifiers
Convenient control via touch pad wall controller or IR remote control
Incl. 6 wall controllers with touch-sensitive surface (touch pad), LCD with blue backlight and IR receiver
Wall controller allows selecting the audio source and volume, treble, bass adjustment for each zone individually
Incl. wall hub for up to 6 wall controllers
Incl. IR remote control
Signal inputs: 4 x stereo RCA, 2 x 3.5 mm jack and 1 x Toslink for digital audio signals
Speaker connection via terminal blocks
6 zone status indicators on the front panel
Automatic gain control selectable for level matching of signal sources
Terminals for IR emitters (accessory) allow extending the IR signals from the remote controls of the signal sources
RS232 port enables two-way communication with a home automation system
Trigger input for muting
6 trigger outputs for switching external amplifiers
Rack installation with 2 U
Power supply:
230 V AC, 50 Hz

Power consumption:
1250 W

Output power sine:


Stereo 4 ohms:
2 x 50 W per zone

Stereo 8 ohms:
2 x 25 W per zone

8 ohms bridged:
6 x 100 W

Frequency range:
20-20000 Hz

Distortion:
0.1 % (1 kHz)

S/N ratio:
85 dB

Input sensitivity:
250 mV

Input impedance:
>47 kohms

Inputs:


1-4:
RCA L/R

5:
3.5 mm stereo jack

6:
3.5 mm stereo jack and Toslink

Speaker connectors:
Terminal block

Output hub/keypad:
RJ-45

Home automation interface:
RS-232

Muting:
12 V DC, via 3.5 mm mono jack

Trigger output:
12 V DC, via 3.5 mm mono jack

IR emitter connectors:
12 V DC, via 3.5 mm mono jack

LED indicators (per channel):
standby/on, peak

Protection circuits:
short-circuit, overheat, overload

Dimensions:
482 x 420 x 102 mm (19, 2 U)

Weight:
13 kg

De OMNITRONIC MCS-1250 MK2 6-Zone PA Versterker van Omnitronic is het ideale product om je fotografie naar een hoger niveau te tillen. Via FotografieVergelijk.nl kan je eenvoudig OMNITRONIC MCS-1250 MK2 6-Zone PA Versterker bestellen bij de goedkoopste leverancier. Met een product van het merk Omnitronic verzeker je jezelf van goede kwaliteit.

Prijzen voor OMNITRONIC MCS-1250 MK2 6-Zone PA Versterker

Specificaties voor OMNITRONIC MCS-1250 MK2 6-Zone PA Versterker

EAN	4026397550245
Merk	Omnitronic
Kleur	OMNITRONIC MCS-1250 MK2 6-Zone PA Versterker
Hoofdcategorie	Electronics and Entertainment
Subcategorie	Sound and Vision
Onderwerp	Home Entertainment
