MADRIX NEO - USB DMX512 interface+License

Productomschrijving

MADRIX NEO is a new easy to use and effective DMX512 USB interface. This DMX512 interface includes already a MADRIX software license for 512 DMX channels. Download the MADRIX software for free, plug in the MADRIX NEO and go.
You can use this interface to send or receive DMX512 using MADRIX.
MADRIX NEO is robust enclosure made from precision light metal. With its eye-catching visual design it does more than look good. When you pick up the MADRIX NEO, you immediately notice the quality. The entire housing technology is light and very robust.

MADRIX USB/DMX interface to issue a DMX universe over XLR

MADRIX NEO is a reliable, easy-to-use, and high-quality DMX512 USB hardware interface including MADRIX software for LED control and MADRIX software license
The interface can be used for DMX input or DMX output to connect DMX512 devices to your computer
The device allows you to control 512 DMX channels by sending or receiving data using MADRIX software
The MADRIX software license for 512 DMX channels per device is already included and automatically activated when connected to MADRIX
Features a 5-pin, female NEUTRIK XLR port
If you want to use DMX-IN, please use a 5-pin XLR male to 5-pin XLR male gender changer
Full USB 2.0 support, Power over USB, Hot Swapping, and Plug & Play
Multiple devices can be used together without problems
Solid metal enclosure with eye-catching design
MADRIX is a powerful, easy-to-use, and award-winning LED lighting control software
Allows you to realize all kinds of different LED projects and lighting designs
A normal PC/laptop can be used for professional LED control
Allows mapping in 2D (pixel mapping) as well as real, spatial 3D (voxel mapping)
The software generates unique effects, visuals, and animations live and in real time
No additional content is required
Already includes a multitude of stock effects that are fully customizable (in speed, color, shape, direction, size, movement, position, brightness, etc.)
Analyzes incoming audio signals Sound2Light and Music2Light in real time
New lighting scenes can easily be created in seconds
Variety of options to combine visuals and graphical elements (layers, mix modes, filters, etc.)
256 x 256 Storage Places to organize and store effects
DJ-like operation with 2 decks (Left/Right) and a crossfader
3 real-time previews to show your visual effects in advance (incl. 2D/3D, zoom, rotation)
Controls up to 4 color channels per pixel/voxel (e.g. 1-channel, 2-channel, RGB, RGBW fixtures)
Freely configurable Cue List for automated playback of a show (incl. time, date, duration, etc.)
Supports Time Code from Art-Net, MIDI, SMPTE, and system time
Remote control available via DMX-IN, Art-Net Remote, MIDI-IN, HTTP (internet browser), CITP
Accompanying Fixture Editor provided including large fixture library
Includes various other tools and features (DMX Fader Tool, DMX Watcher, Matrix Generator, Patch Editor, Touch Screen window, backup system, scripting, mapping, scaling, etc.)
MADRIX minimum system requirements: 2.0 GHz dual-core CPU, OpenGL 2.0 graphics card (NVIDIA recommended), 2 GB RAM, 1 GB free harddisk space, 1280 x 768 screen resolution, network card, sound card, USB 2.0
MADRIX supported operating systems: Microsoft Windows Vista 7 8 8.1 10 (compatible with 32 bit and 64 bit)
Installation instructions and software available in English, Spanish, French, and Simplified Chinese
User manual and quick start guide available in English
Made in Germany
Free software demo version, user manuals, and more information available at www.madrix.com

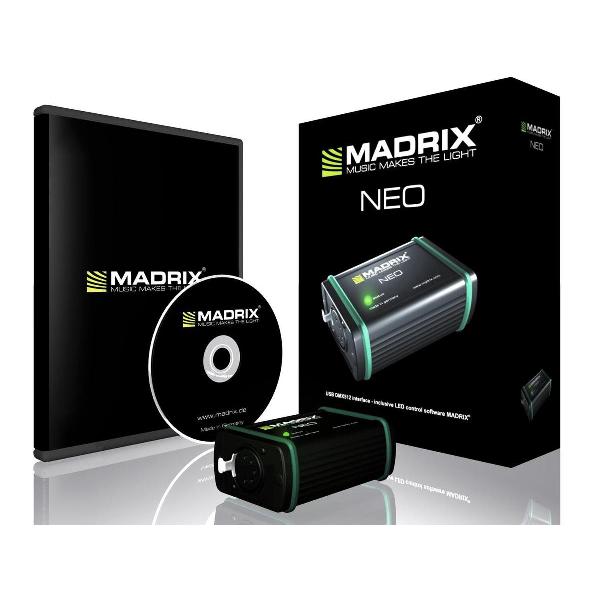

Package Contents: 1x MADRIX NEO - DMX512 interface, 1x USB cable, 1x Quick Start Guide, 1x CD-ROM with MADRIX - Software and drivers
Made in Germany
Power:
DC 5 V, 500 mA, Power over USB

USB:
USB 2.0, type B plug

DMX512:
512 DMX channels, input or output

DMX512 plug:
5-pin, XLR, female, NEUTRIK

Case:
Metal enclosure, IP20

Dimensions:
78 mm x 59 mm x 35 mm (length by width by height)

Weight:


Temperature range:
10 °C to 50 °C (Operating) / -10 °C to 70 °C (Storage)

Relative humidity:
5 % to 80 %, non-condensing (Operating / Storage)
